Zero Trust Security in 2026: Architecture, Real Examples, and Implementation Guide

Zero Trust security 2026 changes how organizations respond to threats in real time. Imagine it is Tuesday at 3:00 AM. A high severity alert from Microsoft Defender for Endpoint wakes you up. A finance user just logged in from an IP address in a country where your company has no presence.

In traditional setups, if that user had an active VPN session, an attacker could access file servers or attempt RDP into a domain controller. You would be rushing to terminate access while lateral movement was already in progress.

With Zero Trust, the response is immediate and automatic. The system detects the “impossible travel” event and flags the device as non-compliant due to a missing certificate. Access to sensitive applications like the treasury system is blocked instantly, while limited access such as email is still allowed under strict controls.

This is how Zero Trust security 2026 works in real environments.

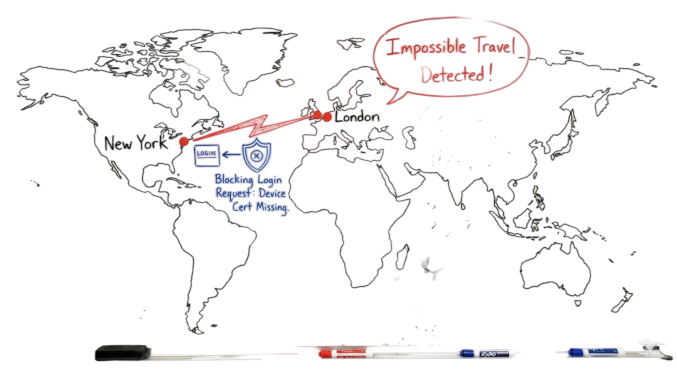

Hand-drawn scenario of an impossible travel alert triggering a zero trust policy enforcement.

What is Zero Trust Security 2026?

Zero Trust security 2026 is not a specific software you install. It is a shift in how access is handled across modern environments. The traditional model worked like a castle, where once a user was inside, they were trusted. In Zero Trust security 2026, the network is always treated as untrusted. It does not matter if access comes from the office or a public network. Every request to data or applications must be verified.

In Zero Trust security 2026, security goes beyond passwords. It focuses on the identity of everything, including users, devices, applications, and even AI agents. Access is never permanent. Instead, it is temporary and based on real-time risk evaluation.

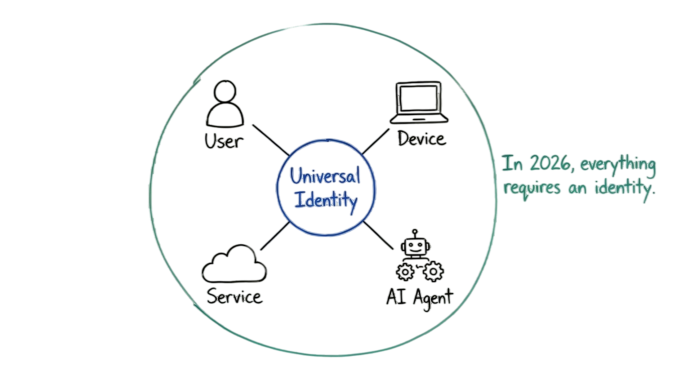

Diagram of the identity of everything principle including agentic AI security trends in 2026.

How Zero Trust Security 2026 Works: The Technical Flow

This is where most people get confused. They think Zero Trust is just a fancy MFA. It is actually a continuous loop.

When a user tries to access a resource, the request hits a Policy Enforcement Point (PEP). In many modern setups, this PEP is your Zscaler Client Connector or even the web browser itself. The PEP does not make decisions. It asks the Policy Decision Point (PDP) if the request is okay.

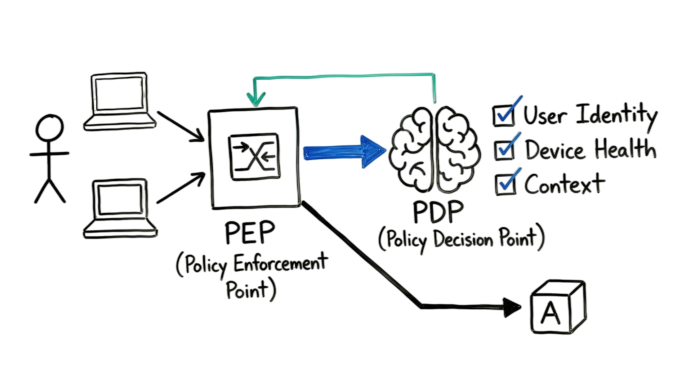

Technical architecture diagram showing PDP and PEP interaction in a zero trust implementation.

The PDP looks at several signals:

  1. User Identity: Is the password correct? Did they pass MFA?
  2. Device Health: Is the OS patched? Is the firewall turned on?
  3. Context: Is the time of day normal? Is the location expected?
  4. Data Sensitivity: Is this a public document or the payroll database?

If everything looks good, the PDP tells the PEP to open a narrow “micro-tunnel” directly to that one application. The user never sees the rest of the network. They cannot ping other servers. They cannot scan for vulnerabilities. They only see what they need to do their job.

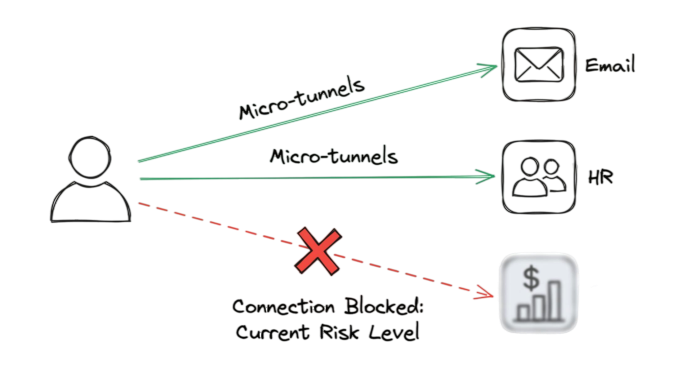

Network flow diagram showing granular access and micro-tunnels to specific applications.

Key Components of Zero Trust Security 2026 Architecture

You need a few specific pieces to make this work in a real enterprise.

Identity Provider (IdP): This is your source of truth. Most of us use Microsoft Entra ID (formerly Azure AD) or Okta. Your IdP needs to enable “Continuous Access Evaluation” by 2026. This implies that a user’s access to all apps is terminated in moments rather than hours if they are dismissed.

Zero Trust Network Access (ZTNA): This replaces your old VPN. Instead of giving a user an IP on your internal network, ZTNA acts as a broker. It hides your applications from the public internet. If an attacker scans your public IP, they see nothing.

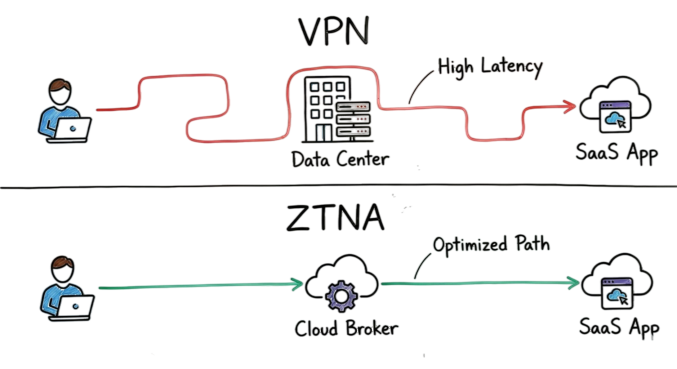

ZTNA vs VPN technical comparison diagram showing optimized network paths and security brokering,Zero Trust security 2026 architecture diagram and access flow

Micro-segmentation: Stopping lateral movement is the goal here. Micro-segmentation keeps an attacker from going straight to the database server if they manage to get onto a web server. Rules such as “Web-Server-A can only talk to Database-B on port 1433” are defined.”Everything else is abandoned.

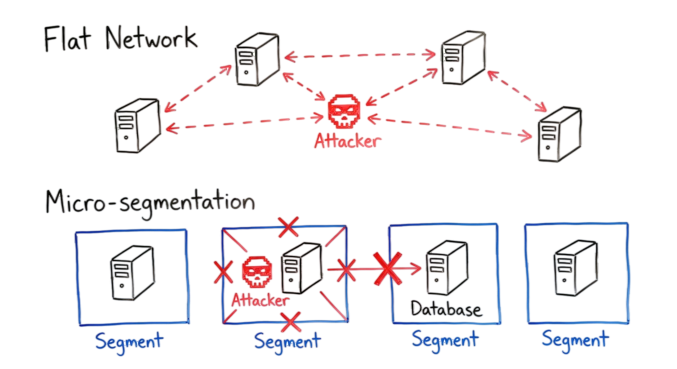

Whiteboard drawing illustrating how microsegmentation best practices 2026 block lateral movement during a cyber attack.

Agentic AI Security: By 2026, we have AI agents performing tasks for us. These agents need their own identities and permissions. You have to treat an AI agent exactly like a human user. It needs a “least privilege” policy so it doesn’t accidentally leak sensitive data while trying to help you.

A Personal Insight from the Trenches

During my first three years in security, I handled split-tunneling issues and frequent VPN password resets. It was a difficult setup. After moving to Zero Trust security 2026 using Zscaler, my ticket volume for access issues dropped by nearly 60 percent.

The biggest lesson from Zero Trust security 2026 is that you cannot rely on location alone. I saw a real case where a user logged in from a valid location, passed MFA, but their device was infected with a rootkit. In a traditional model, that access would likely be allowed.

With Zero Trust security 2026, the system blocked access because the device failed the health check. The policy required a secure device, not just a valid user identity.

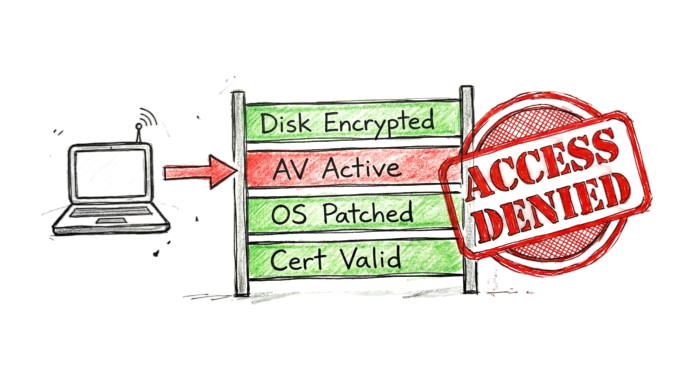

Diagram showing device posture checks and zero trust policy enforcement examples.

Real-World Observation: The Logs

If you want to see Zero Trust security 2026 in action, check your SIEM logs. Here is a real example:

Event: AccessDenied
User: asharma@technaga.com
Source: 203.0.113.5 (Public Internet)
Destination: SAP-Production-App
Policy: High-Value-Asset-Access
Reason: DevicePostureNonCompliant (CrowdStrike sensor inactive)

In a traditional setup, this user might have bypassed controls using a valid session. With Zero Trust security 2026, the system detected that the endpoint protection sensor was inactive and immediately blocked access.

This is how Zero Trust security 2026 enforces continuous verification based on device posture, not just user authentication.

Practical Implementation Steps

Do not try to flip a switch and turn on Zero Trust for the whole company on a Monday morning. You will break everything and get fired. Follow this sequence instead:

  1. Inventory everything: You cannot protect what you do not know about. List your apps, your data, and your users.
  2. Start with Identity: Get everyone on MFA. Use hardware keys for your admins.
  3. Pick one application: Move a low-risk app to ZTNA first. Learn how the policies behave.
  4. Deploy Device Management: To enforce compliance, use Intune or a comparable technology. A device cannot be accessed if it is not encrypted.
  5. Enforce Micro-segmentation: Start with your most sensitive data. Build a wall around your customer database.

Advantages and Limitations

The biggest advantage of Zero Trust security 2026 is the reduction in attack surface. It also improves visibility, allowing you to track who accessed which data and when. For remote users, Zero Trust security 2026 removes the dependency on slow VPN connections and provides faster, direct access to applications.

However, Zero Trust security 2026 comes with challenges. It requires close coordination between identity, network, and application teams. Legacy applications that rely on hardcoded IP addresses may break when moved to a Zero Trust model. There is also an initial cost involved in deploying the right tools and licenses.

Common Mistakes to Avoid

A common mistake in Zero Trust security 2026 is assuming that ZTNA alone is enough. I have seen organizations deploy a ZTNA client while keeping their internal network flat. Without micro-segmentation, an attacker can still move laterally using a compromised but trusted device.

Another critical gap in Zero Trust security 2026 is ignoring non-human identities. Service accounts and API keys are major targets for attackers. If a service account has Domain Admin privileges without proper restrictions, it creates a serious risk and breaks the core principles of Zero Trust.

Troubleshooting Scenario: The “Invisible” App

A junior engineer comes to you and says, “A user can log into the Zscaler portal, but they cannot see the HR Portal app.”

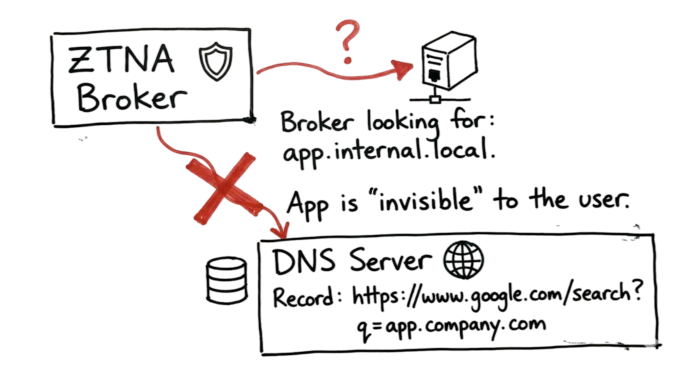

Troubleshooting flow diagram for DNS mismatches in a zero trust network access setup.

First, check the logs in your Zscaler Private Access (ZPA) console. You see the request is reaching the “App Connector,” but the “Server Status” is down. In real environments, it doesn’t work this cleanly. The issue is usually a DNS mismatch. The ZTNA broker is looking for hrportal.internal.local, but the internal DNS server only knows about hrportal.company.com.

In Zero Trust, the broker is the middleman. If the broker cannot resolve the internal name of the server, the app is “invisible” to the user. You fix this by updating the “Application Segment” configuration to match the exact FQDN the internal server uses.

Interview Questions for 2026

  1. How does a Policy Decision Point (PDP) differ from a Policy Enforcement Point (PEP)? Answer: The PDP is the brain that evaluates the rules, while the PEP is the gatekeeper that actually allows or blocks the traffic.
  2. Why is identity considered the new perimeter in 2026? Answer: Because users and data are everywhere. We can no longer rely on physical walls or IP addresses to define what is “safe.”
  3. What is “Implicit Trust” and why does Zero Trust eliminate it? Answer: Implicit trust is the old idea that “inside the network equals safe.” Zero Trust eliminates this by requiring verification for every single request, regardless of origin.
  4. Explain how micro-segmentation helps during a ransomware attack. Answer: It prevents the ransomware from spreading from the initial infected machine to other servers by blocking east-west traffic.
  5. What role does device posture play in an access decision? Answer: It ensures the hardware is secure (encrypted, patched, running AV) before allowing it to touch sensitive data.

Future Trends (Late 2026)

By the end of this year, we will see “Self-Healing Policies.” AI agents will monitor your network traffic and automatically create micro-segmentation rules based on observed behavior. We are also moving toward “Browser-Isolated Access.” For many apps, you won’t even need a client on the laptop. The secure browser will handle all the policy enforcement and data loss prevention.

FAQ

Is Zero Trust only for cloud apps? No. You can apply Zero Trust to your on-premise data centers too. You just need a broker (like a Zscaler App Connector) to sit in front of your old servers.

Does Zero Trust replace my firewall? Not exactly. You still need firewalls for basic packet filtering and outbound traffic control. However, your internal “east-west” firewalling is now handled by your Zero Trust tools.

What is the “Identity of Everything”? In 2026, this means giving every user, device, cloud service, and AI agent a unique, verifiable identity.

Can I implement Zero Trust without Zscaler? Yes. You can use Microsoft Entra Private Access, Palo Alto Prisma Access, or even open-source tools. The tools vary, but the principles stay the same.

Does Zero Trust make the network slower? If done right, it is actually faster. ZTNA uses optimized paths to connect users to apps, whereas a VPN often sends all traffic to a central data center before sending it out to the cloud.

Conclusion

Building a Zero Trust security 2026 network is a long-term effort. It takes time to design policies, align teams, and fine-tune access controls. The risk of doing nothing is high. A single compromised credential can still impact an entire organization.

Start small with Zero Trust security 2026. Focus on identity, enforce MFA, and validate device posture. Gain visibility through logs and continuously monitor access behavior. Over time, expand into ZTNA, micro-segmentation, and strict least-privilege access.

To get the best results from Zero Trust security 2026, follow these practical steps:

  • Continuously monitor and analyze SIEM logs
  • Enforce least privilege for users and service accounts
  • Regularly audit device compliance and security posture
  • Segment critical applications and sensitive data
  • Replace legacy VPN access with ZTNA where possible

Organizations adopting Zero Trust security 2026 reduce attack surface, improve control, and prevent lateral movement. The principle remains simple and effective: Never trust, always verify, and validate every request continuously.

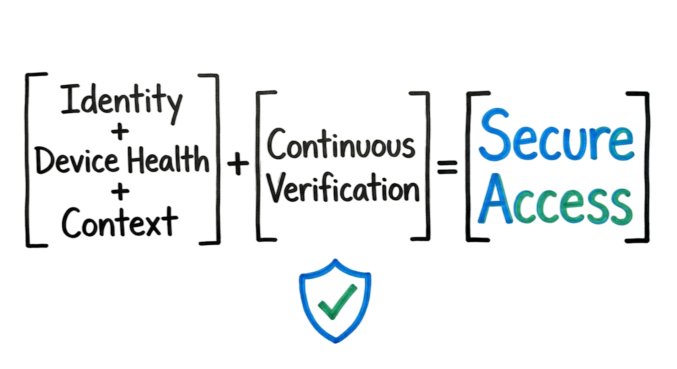

Summary diagram of the zero trust security formula for beginner and intermediate professionals.
