You get a call at 3 AM. The primary banking application for a client in Riyadh is crawling, or worse, completely unreachable. Your junior engineer is panic-checking the firewall rules. Another person is restarting the web server. Everyone is guessing. This is where most people get confused because they try to fix everything at once without a structured plan. When you don’t have a mental map of how data actually moves from a user’s laptop to your server, you are just a “config monkey” pressing buttons and hoping for the best.
In my five years working as a security analyst, mostly with Zscaler and enterprise firewalls, I have learned that the OSI Model is your most powerful tool for cutting through the noise. It is a conceptual framework that breaks down the massive complexity of networking into manageable pieces. This guide explains how the seven layers actually work in real environments and how you can use them to stop guessing and start fixing.
OSI Model Definition
The abbreviation OSI stands for Open Systems Interconnection. The OSI Model is a conceptual framework created by the International Organization for Standardization. It defines seven layers used in network communication.
Each layer in the OSI Model has a specific role. Together, they allow different systems to communicate in a structured way. This is why vendors like Cisco, Juniper, and Zscaler can build devices that work with each other.
Even though modern networks use the TCP/IP model, the OSI Model is still widely used for troubleshooting and security analysis. It gives you a clear way to identify where a problem exists.
For example, if someone says it’s a “Layer 3 issue,” you immediately know the problem is related to IP addressing or routing in the OSI Model.
Encapsulation & Decapsulation Process
Networking in the OSI Model is all about how data is packaged and unpackaged as it moves between systems. When you send something like an email, the data does not travel as-is. It passes through multiple layers defined in the OSI Model.

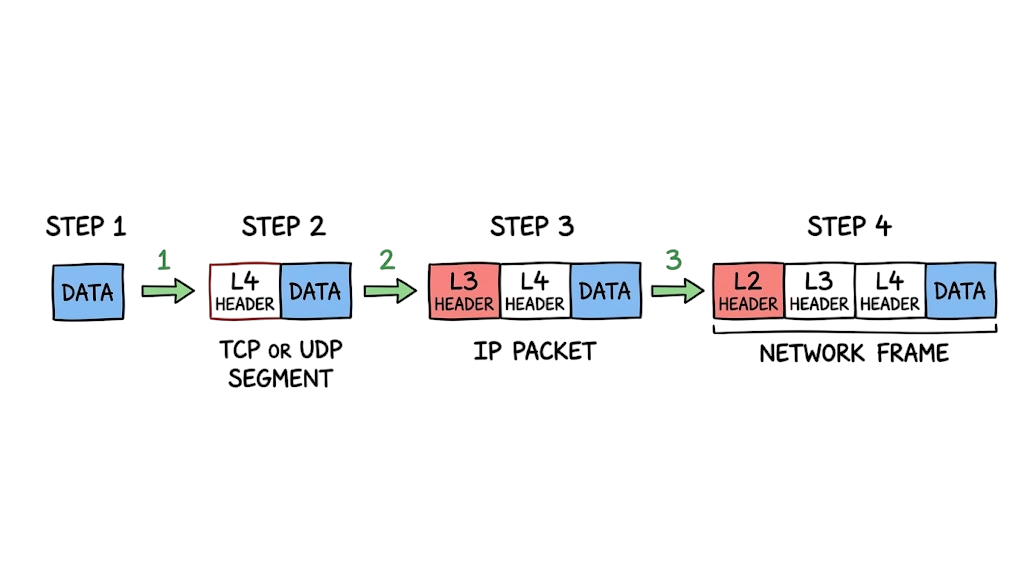

As the data moves from the top layer to the bottom, each layer in the OSI Model adds its own header. This process is called encapsulation. Each header contains specific instructions that help the data reach the correct destination.
Once the data reaches the destination, the process reverses. Each layer in the OSI Model removes its corresponding header step by step. This is called decapsulation.
At every stage, the receiving system checks the information. It verifies whether the data is valid and whether it should process it further.
If something is wrong, such as a missing header or corrupted data, the packet is dropped. That is why even a small issue in one layer of the OSI Model can break the entire communication.
The Technical Flow of Data
Let’s look at the actual flow when you visit a site like Tech Naga. Your browser creates a request at the Application layer. The Presentation layer ensures it is encrypted using TLS. The Session layer manages the connection state. Then, the Transport layer breaks that data into segments and adds port numbers.
The Network layer takes those segments and turns them into packets by adding source and destination IP addresses. The Data Link layer wraps those packets into frames with MAC addresses. Finally, the Physical layer converts everything into bits and sends them over the cable. Each step is logical. Each step depends on the one before it.
Key Components of the OSI Stack

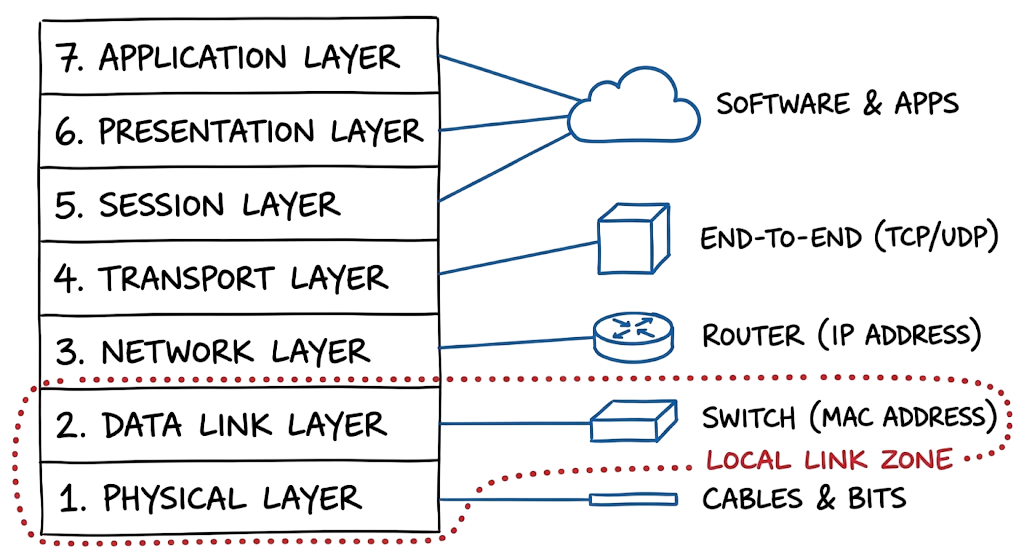

To keep this simple, here is a list of what each layer handles and what you need to watch out for as an engineer:
- Layer 7 Application: The entry point for users where protocols like HTTP, DNS, and SSH live.
- Layer 6 Presentation: Handles data translation, compression, and vital security tasks like SSL/TLS encryption.
- Layer 5 Session: Manages the start and end of conversations between two devices to keep data flows organized.
- Layer 4 Transport: Coordinates data transfer between hosts using TCP for reliability or UDP for speed.
- Layer 3 Network: Determines the best physical path for data packets using IP addresses and routers.
- Layer 2 Data Link: Provides node to node data transfer and error correction over the local physical link using MAC addresses.
- Layer 1 Physical: The actual hardware, cables, and radio waves that transmit raw bitstreams across the network.
Real Example: Analyzing a DNS Log
In real environments, it doesn’t work this cleanly, but logs never lie. Here is a standard DNS query captured from a terminal. This happens at Layer 7, but it relies on every layer below it to function.
Plaintext
09:12:44.218321 IP 10.10.20.5.54322 > 8.8.8.8.53: 5234+ A? technaga.com. (32)
09:12:44.250412 IP 8.8.8.8.53 > 10.10.20.5.54322: 5234 1/0/0 A 104.18.2.161 (48)
In this log, you see the source IP 10.10.20.5 (Layer 3) sending a request from port 54322 to the destination 8.8.8.8 on port 53 (Layer 4). The actual request for “technaga.com” is the Layer 7 payload. If you see the request go out but no response comes back, you start checking down the stack. Is the router blocking port 53? That is a Layer 4 issue. Is the IP address unreachable? That is a Layer 3 issue.
Practical Implementation: A Bottom Up Troubleshooting Guide

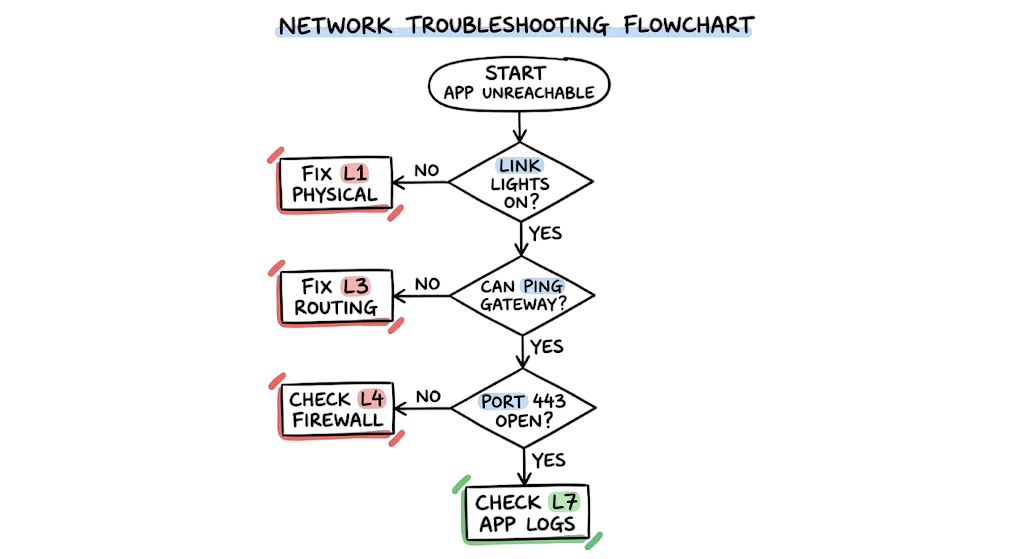

When something breaks, don’t start at the top. Follow these steps to find the root cause quickly:
- Check the physical lights on the network interface card or the switch port to confirm Layer 1 connectivity.
- Run a command to see if your device has a valid MAC address and can see the neighbor’s MAC via the ARP table.
- Verify your IP address and try to ping your default gateway to ensure Layer 3 routing is working.
- Use a tool like Telnet or Test-NetConnection to check if the specific port you need is open and listening.
- Check for session timeouts or persistent connection issues in your application logs to rule out Layer 5 problems.
- Ensure that the client and server agree on the encryption version, such as TLS 1.3, at the Presentation layer.
- Test the application directly using a tool like Curl to see if the server returns the expected HTTP response code.
Advantages and Limitations of the OSI Model
The biggest advantage of this model is standardization. It allows us to troubleshoot in a structured way. It also helps with security. You can apply different security controls at different layers, such as using a MAC filter at Layer 2 and a Web Application Firewall at Layer 7.
However, the OSI Model has limits. It is a theoretical model. In the real world, the TCP/IP model is what we actually implement. Some layers, like the Session and Presentation layers, are often merged into the Application layer in modern protocols. If you stick too strictly to the theoretical definitions, you might get caught in a debate about where exactly a protocol like MPLS lives. It is a guide, not a law.
Common Mistakes I See Juniors Make
The most common mistake is jumping to the Application layer immediately. I have seen engineers spend two hours debugging a Zscaler Client Connector configuration only to realize the user’s Wi-Fi was actually turned off. Another mistake is ignoring Layer 2. People assume that if they can’t ping an IP, it must be a routing issue. Sometimes, it is just an ARP issue or a VLAN mismatch on the switch.
When I was working on a banking client environment in Mumbai, a technician accidentally plugged both ends of a patch cable into the same core switch. The Layer 2 loop brought the entire network down. I spent an hour checking the firewall at Layer 4 before I finally looked at the switch logs at Layer 2. Don’t be that person. Start from the bottom.
Best Practices for Network Security

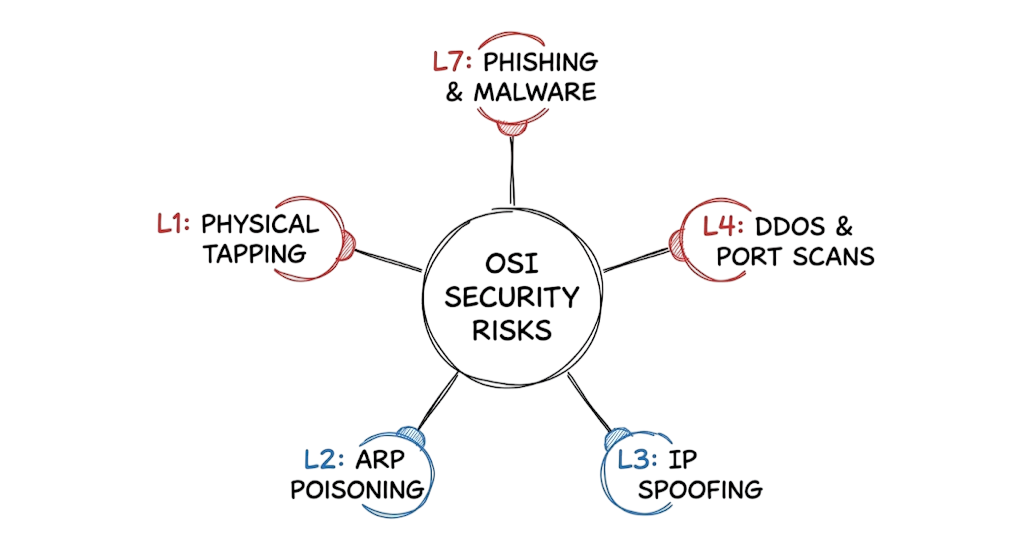

Security must be layered just like the model. At Layer 1, you should disable unused physical ports in your data center. At Layer 2, use Port Security to limit which MAC addresses can connect. At Layer 3 and 4, use stateful firewalls to restrict traffic to only what is necessary.
Now here is where it gets interesting: the Presentation layer. Regulatory bodies like SAMA in Saudi Arabia or the RBI in India have strict requirements for encryption. You must ensure that you are not using outdated protocols like SSLv3 or TLS 1.0. Enforcing strong encryption here protects your data even if the lower layers are compromised.
Troubleshooting Scenario: The Mystery of the Dropped Tunnels

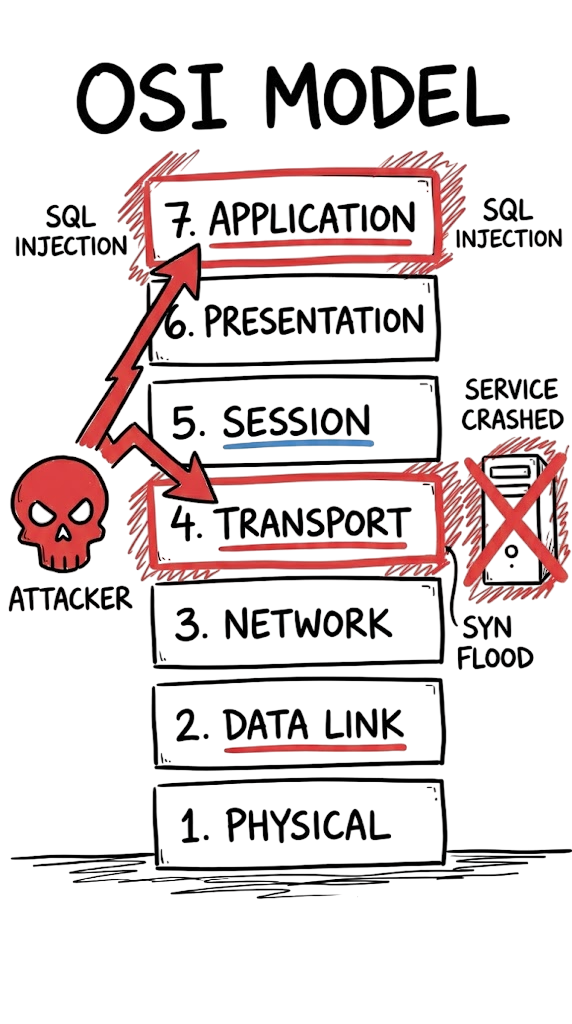

Imagine you are deploying Zscaler. The user’s Z-Tunnel 2.0 is flapping. It connects for a second and then drops. Most engineers assume the authentication is failing at Layer 7. They check the logs for “Invalid Credentials.” But the fix is actually at Layer 4. The Maximum Segment Size (MSS) is too large for the tunnel overhead, causing the packets to be fragmented and dropped by the ISP. By reducing the MSS at the Transport layer, the tunnel stays stable. This is why understanding the relationship between the layers is vital.
Interview Questions for Aspiring Engineers
Q: What is the difference between a Layer 2 switch and a Layer 3 router?
A: A Layer 2 switch uses MAC addresses to send data within a single local network. A Layer 3 router uses IP addresses to move data between different networks.
Q: At which layer does a standard firewall operate?
A: Traditional firewalls operate at Layers 3 and 4 to filter traffic by IP and port. Modern Next-Generation Firewalls also operate at Layer 7 to inspect application data.
Q: What is the purpose of the Presentation Layer?
A: It ensures that data is in a format the application can understand. This includes character encoding like UTF-8 and encryption like TLS.
Q: Explain the concept of encapsulation?
A: Encapsulation is the process where each layer adds its own header to the data as it moves down the stack. This header contains the instructions for the corresponding layer on the receiving side.
Q: Where does the DNS protocol live?
A: DNS lives at the Application Layer (Layer 7). It translates human-friendly names into IP addresses that the lower layers can use for routing.
Future Trends: 2026 and Beyond
As we move toward 2026, the OSI Model is adapting to new technologies. The “Internet of Cognition” is a concept being researched where we add even more layers for AI agent communication. These agents need to exchange meaning, not just raw data. This shifts our focus even higher up the stack.
Another major shift is Post-Quantum Cryptography. Since attackers are doing “Harvest Now, Decrypt Later” at Layer 6, we are seeing a push for quantum-resistant algorithms in India and the GCC. This will change how we handle the Presentation layer entirely. Finally, the rise of “Layer 8” as a joke about “User Error” or “Politics” is becoming a real technical focus. We are now integrating user identity directly into the networking stack through Zero Trust architectures.
FAQ
Why is the OSI Model still relevant if we use TCP/IP? The OSI Model provides a more detailed breakdown of the communication process. It is the global standard for teaching and troubleshooting even if the underlying protocols are slightly different.
Which layer is the most important for security? No single layer is most important. You need a “defense in depth” strategy. A failure at Layer 1 is just as dangerous as a vulnerability at Layer 7.
What is a Layer 8 error? In the industry, Layer 8 refers to the user. It is a way of saying the problem is caused by human error rather than a technical failure in the stack.
Do all protocols fit perfectly into one layer? No. Some protocols like ARP or MPLS operate between layers. We sometimes call these Layer 2.5 protocols because they don’t fit the theoretical model perfectly.
How does Zscaler use the OSI Model? Zscaler operates primarily at Layer 7 for its Secure Web Gateway. However, it uses Layer 3 tunnels to capture and move traffic from the user’s device to the cloud.
Conclusion
The OSI Model acts as a map that helps you navigate modern network issues. When you understand these seven layers, you can troubleshoot faster, design better systems, and secure your environment more effectively.
Instead of reacting blindly to a “network down” alert, the OSI Model gives you a structured way to identify the root cause. You move step by step, layer by layer, until you find the exact problem.
Start using a bottom-up approach in the OSI Model. The next time a connection fails, check the physical layer first before jumping to application settings. This simple habit saves time and avoids unnecessary troubleshooting.
Refernce: wikipedia
